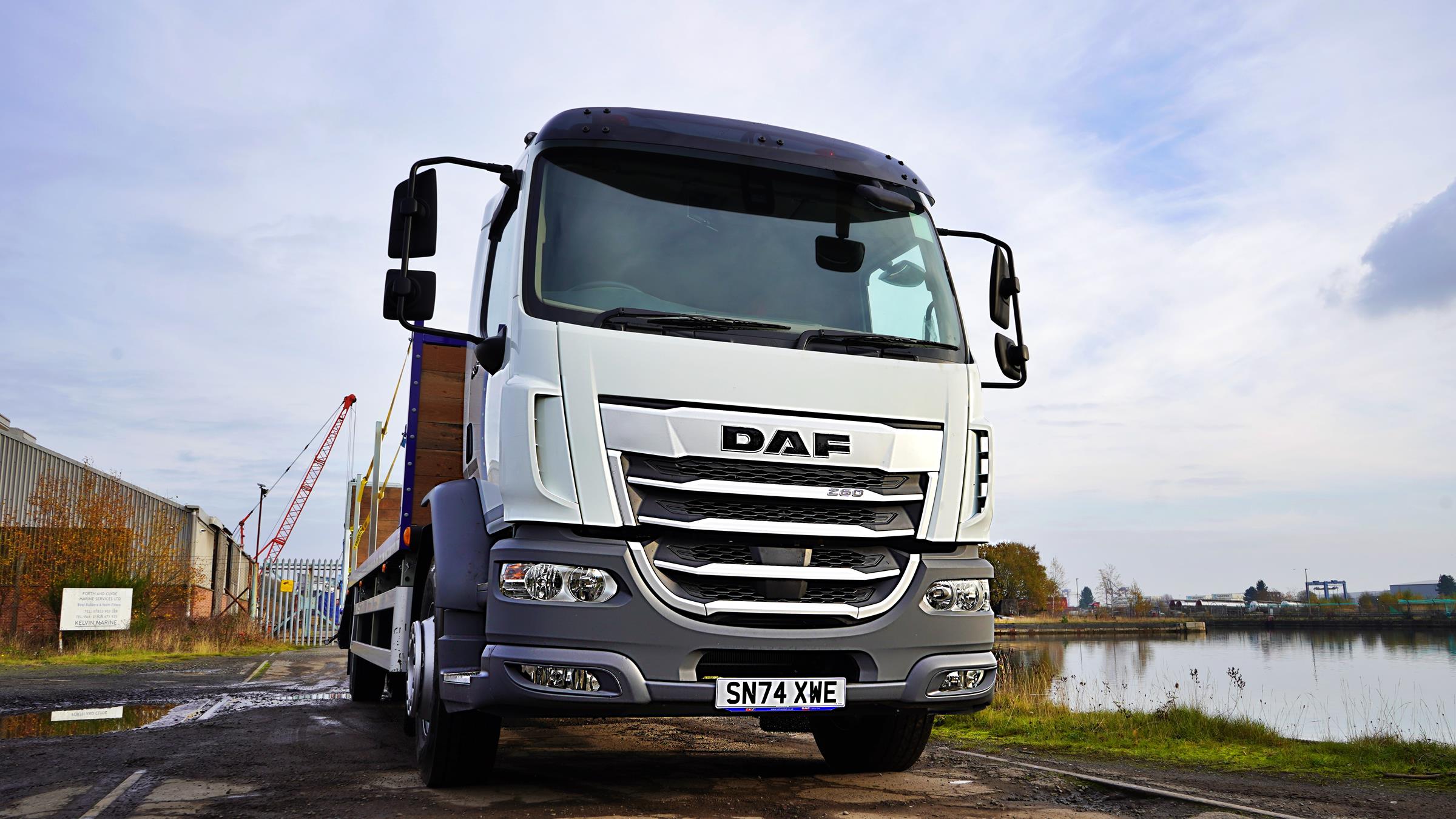

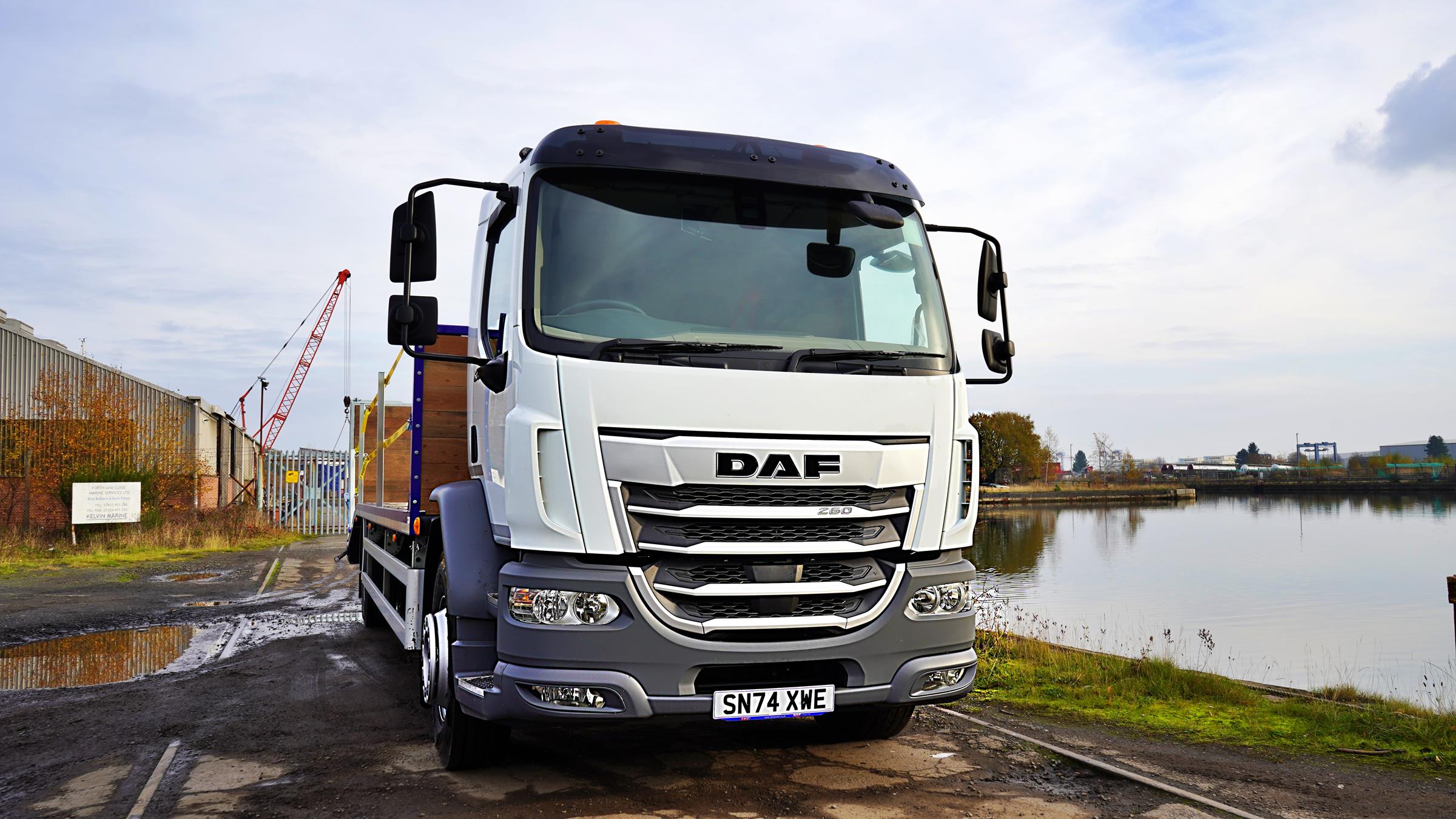

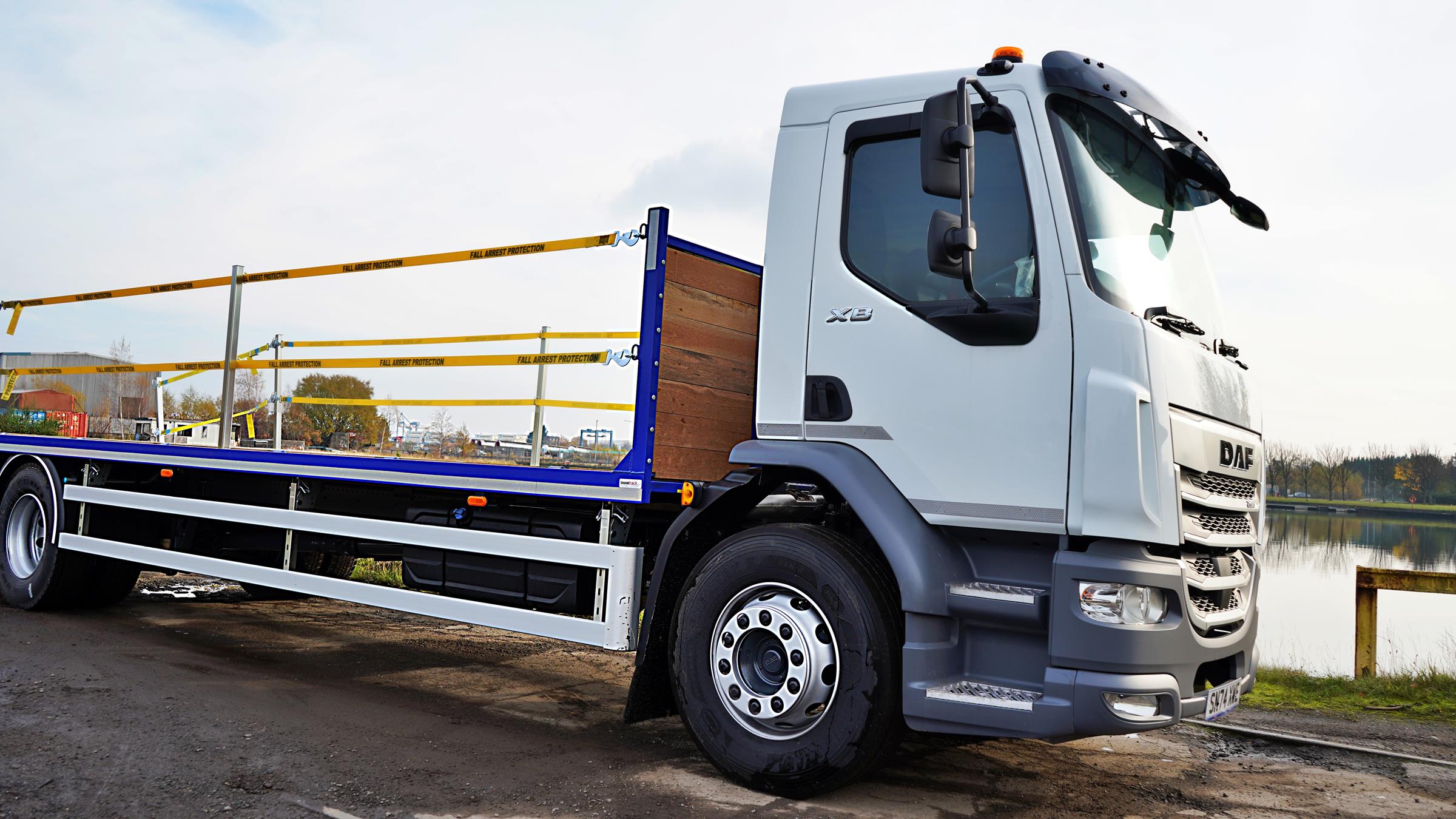

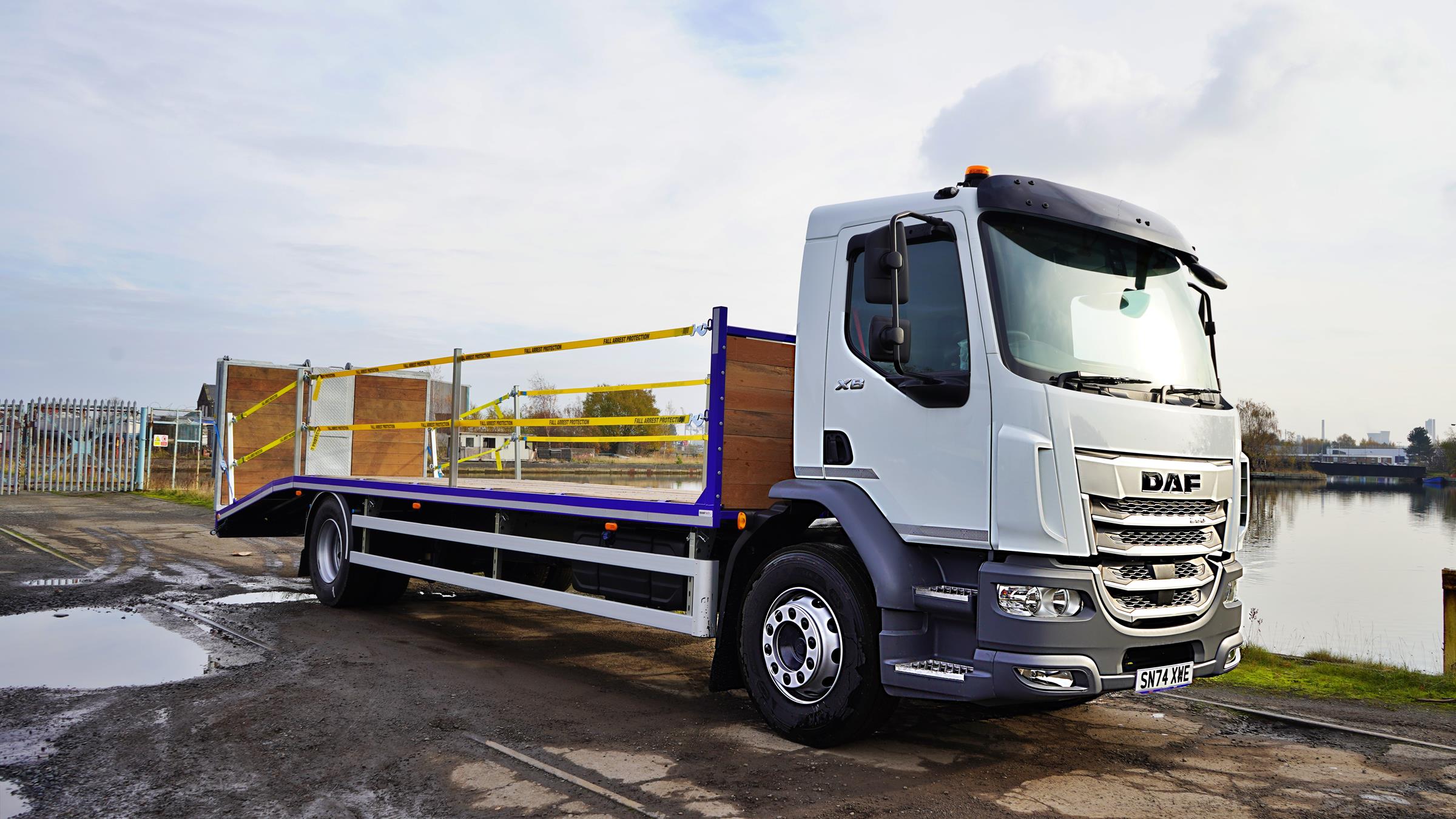

2024 DAF XB260 18-tonne Shawtrack Beavertail Plant Truck
SN74XWE
Euro 6
260hp
Powerline 8-Speed Automatic Gearbox
Day Cab
Air Suspended Driver Seat
Twin Passenger
Air-Con
Bluetooth

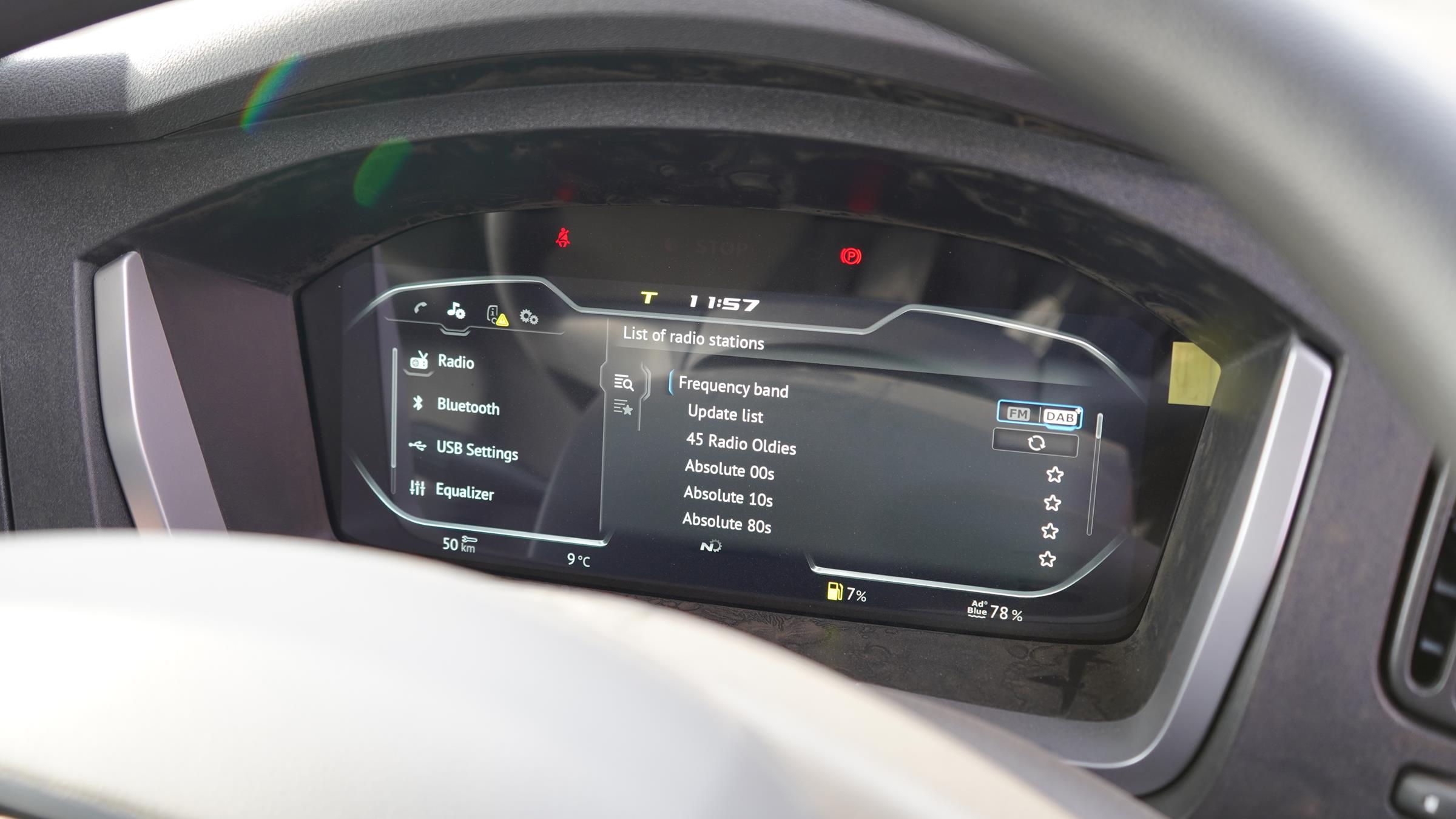

DAB Radio
Twin Beacons
Steel Bumper
Bumper Mounted Fog Lights
Daytime Running Lights
Sunvisor

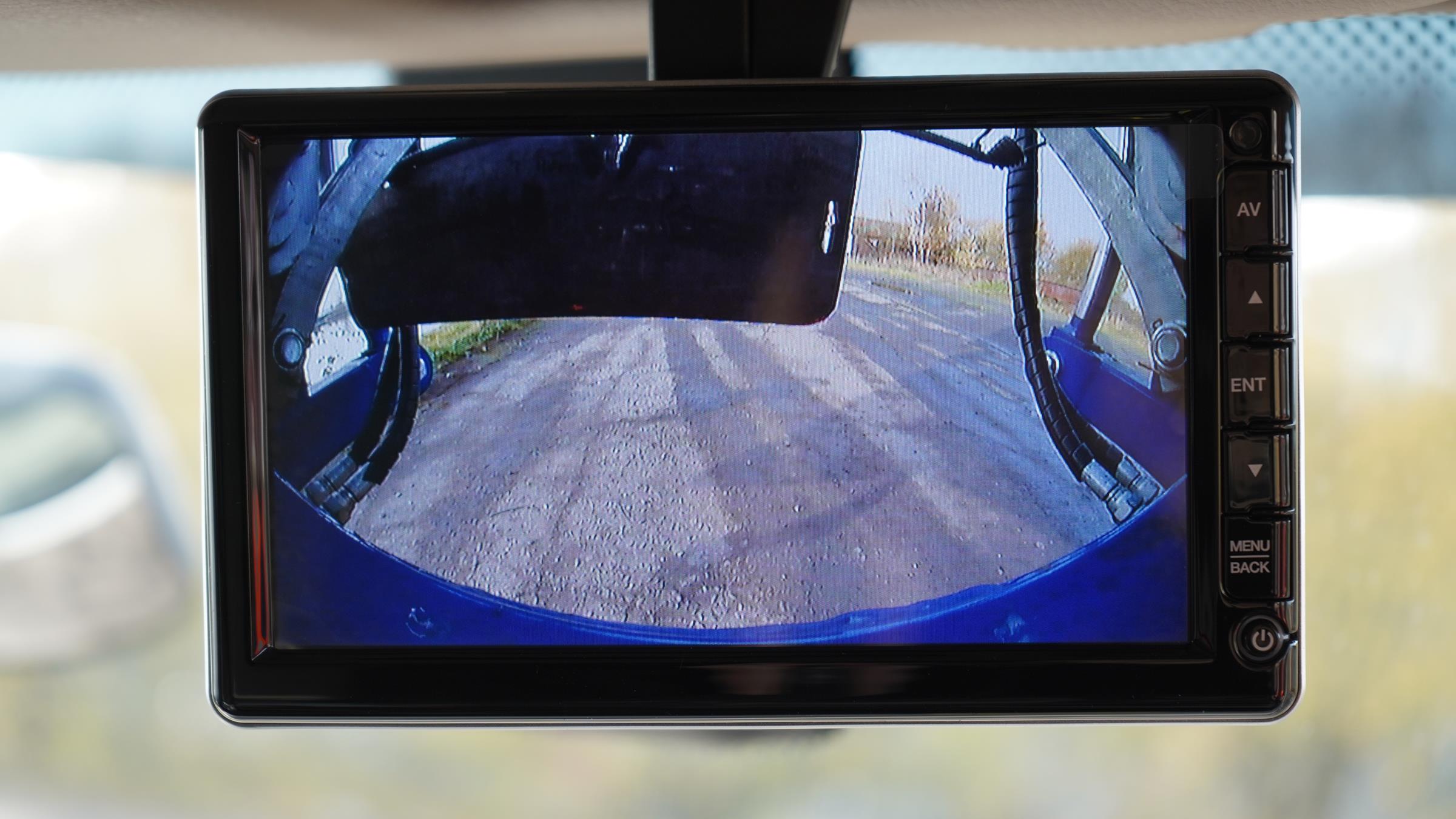

Reverse Camera
Weight: 18,000kg GVW
Tare Weight: 8200kg
Operating payload: >9300kg

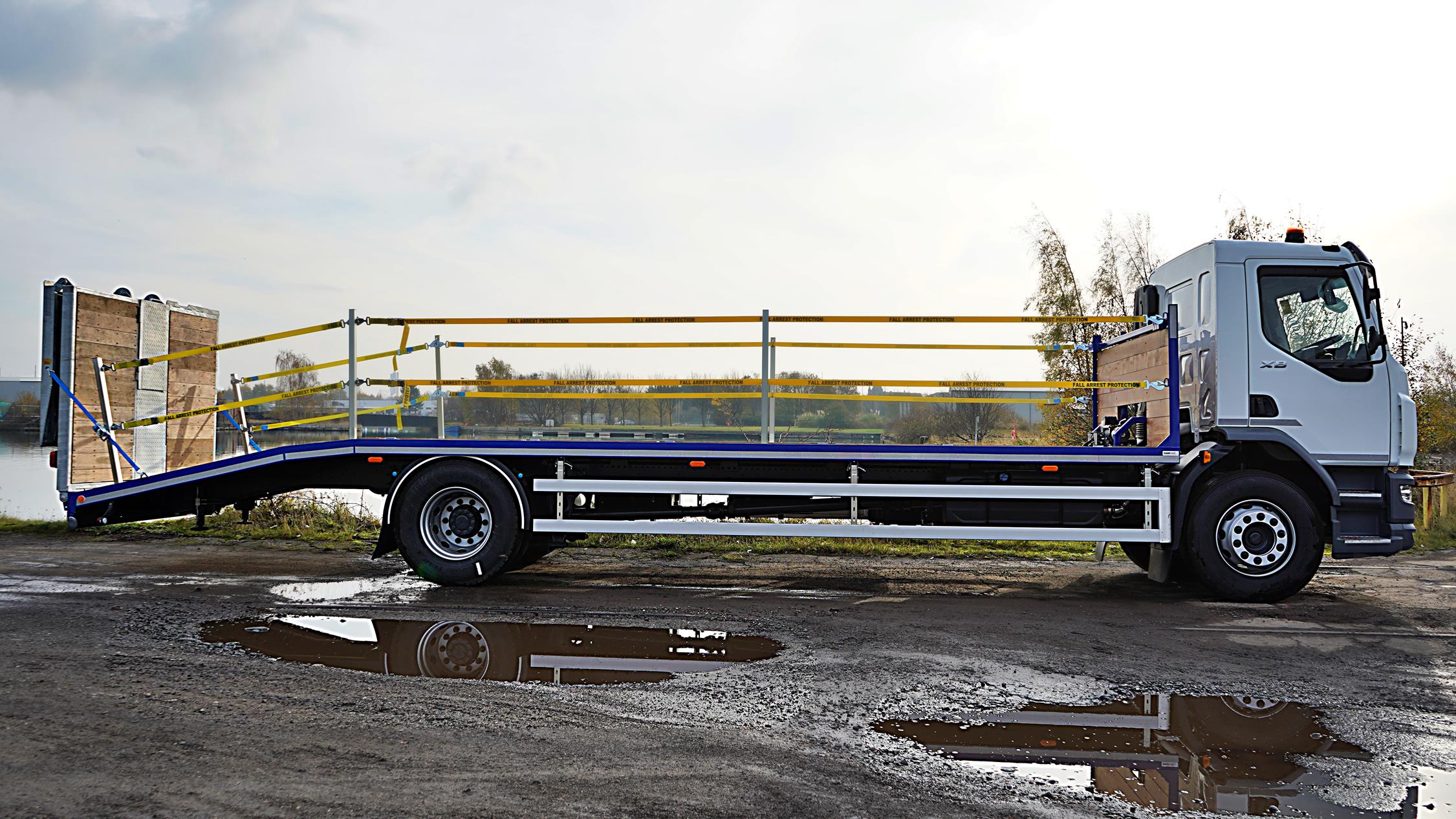

Shawtrack 18-tonne Low Profile Beavertail Body
Battery and electro-hydraulic powerpack set up
Body length: Headboard to First Crank 21ft (29ft total to rear ramps)
8ft 4" wide Body - 2550mm
The subframe is constructed from a high-grade steel channel with I-beam cross members stitched through.
Side raves were constructed using a heavy-duty unequal angle channel.

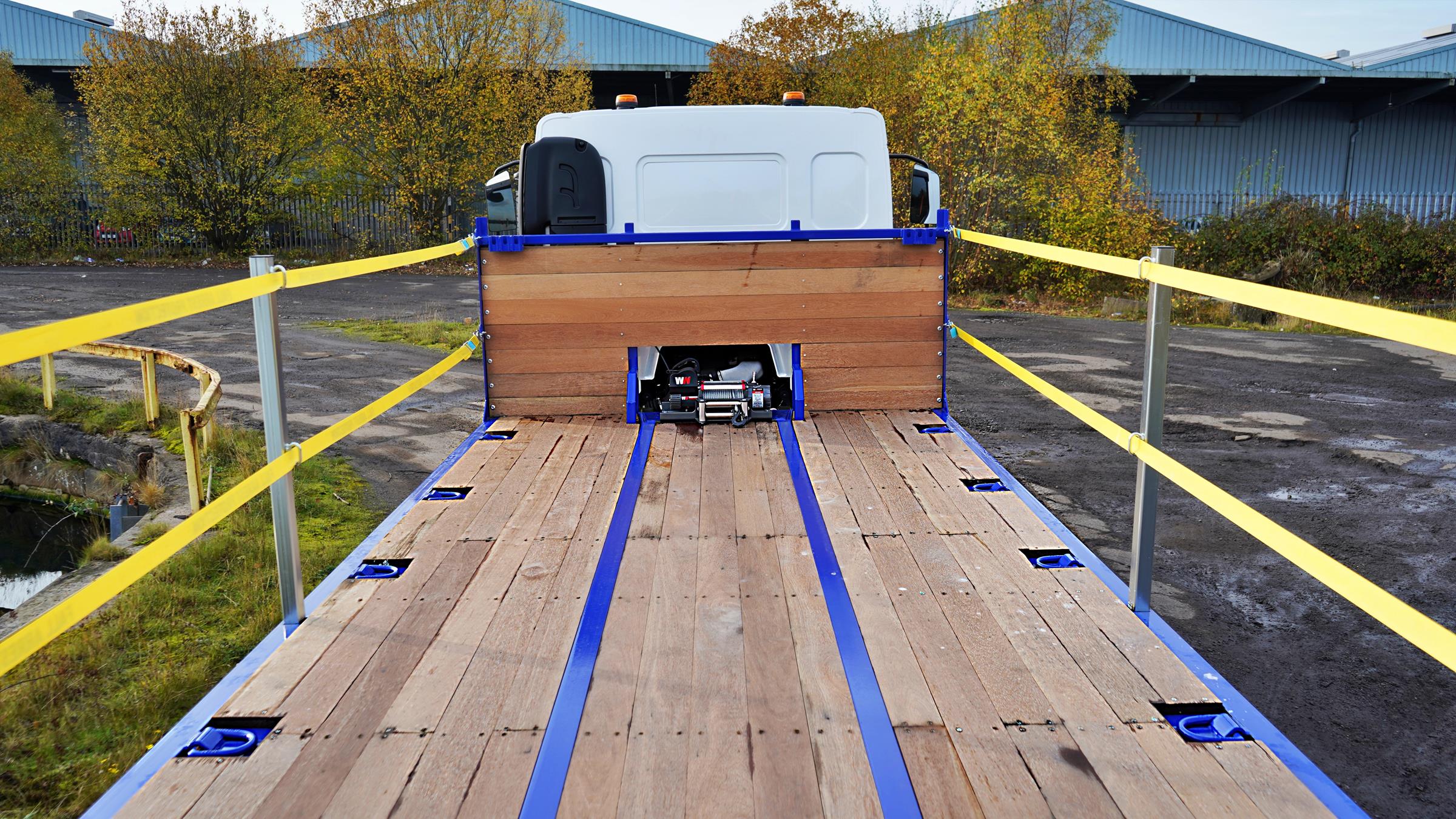

1000mm high headboard infilled with hardwood timber.

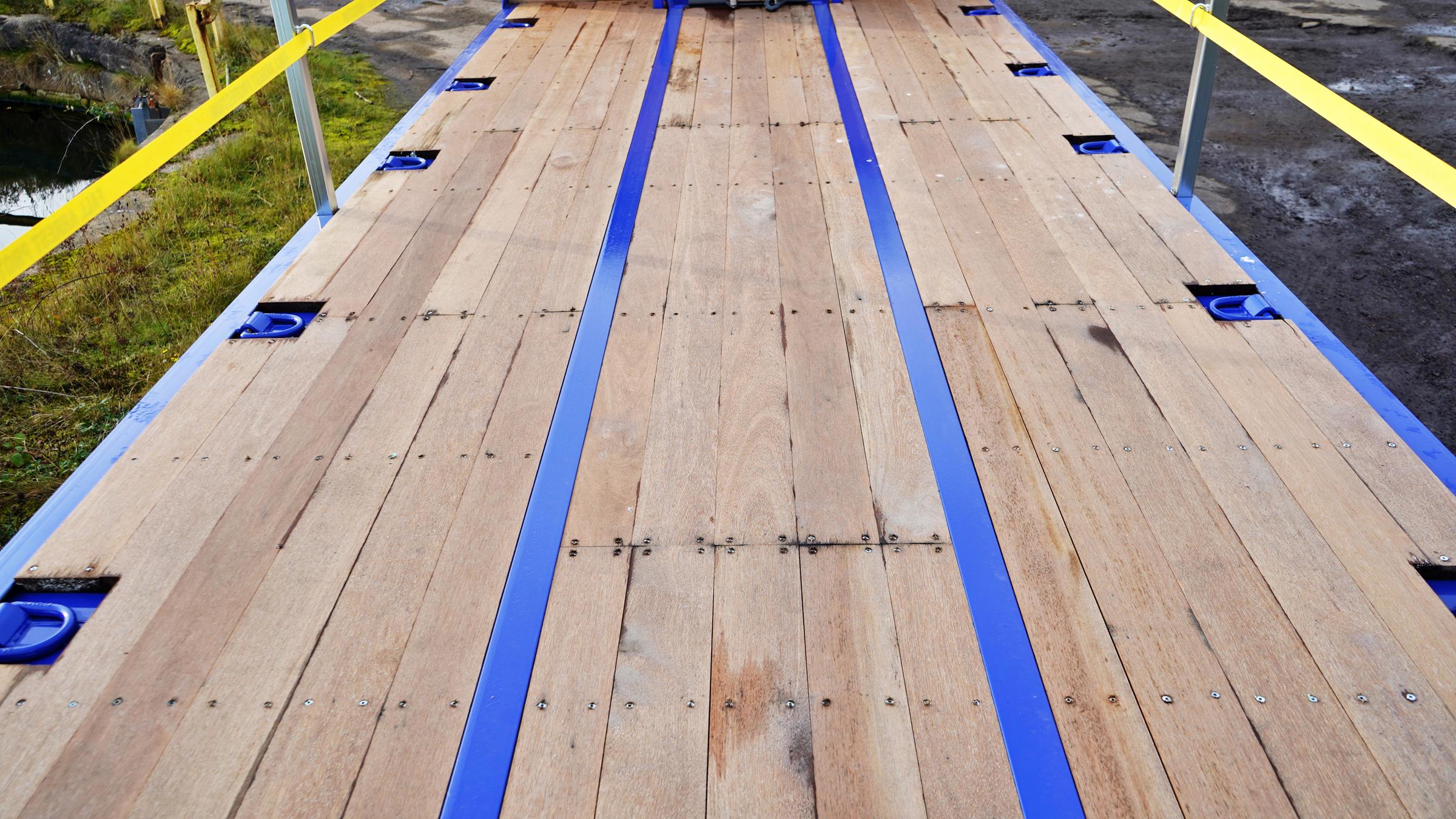

28mm Kerruing hardwood flooring.

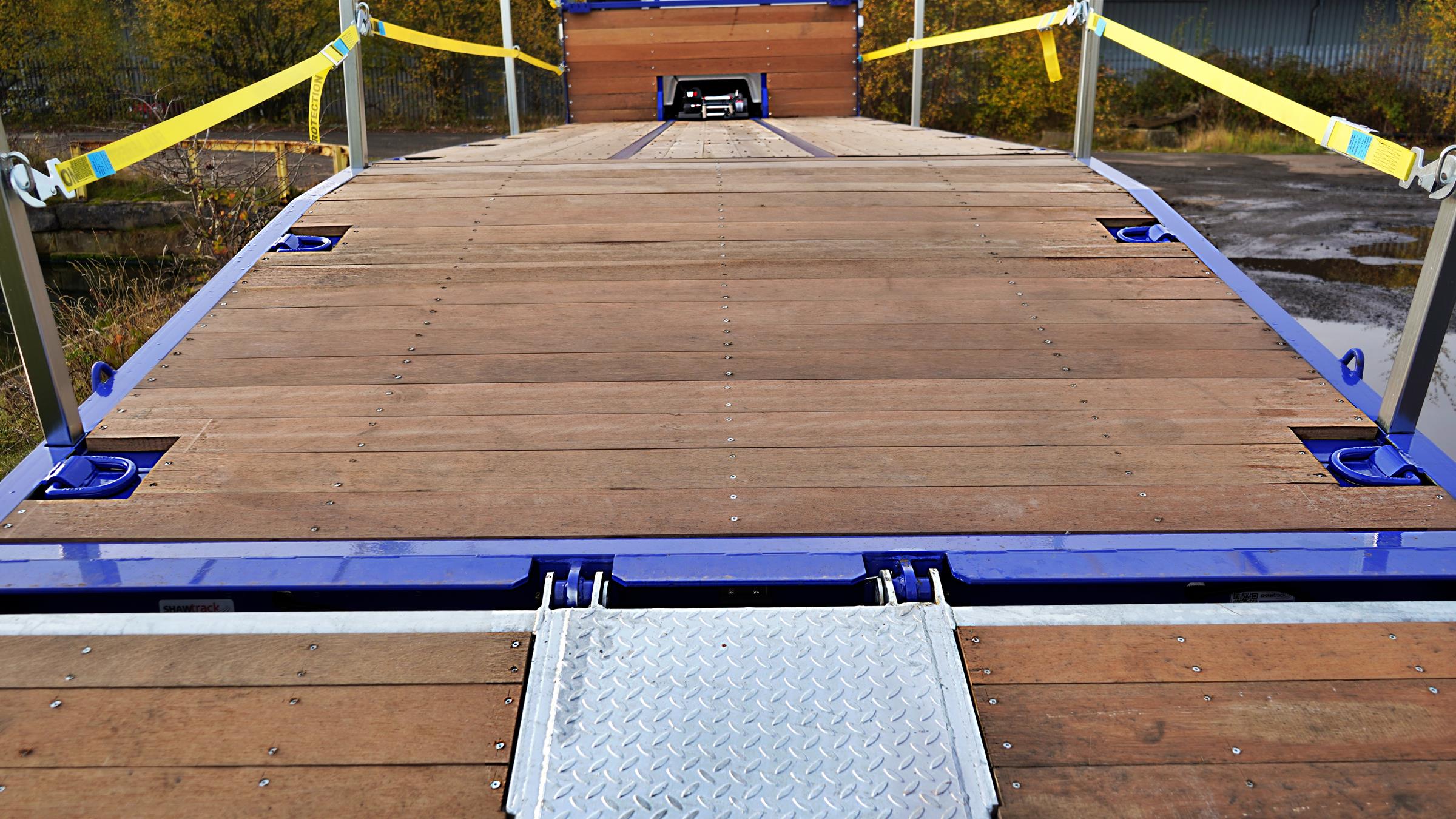

Six x 12-tonne lashing rings per side mounted on the flat deck.
Two x 12tonne lashing rings installed on each side on the beavertail
800mm plastic toolbox mounted underbody N/S.
Twin strap and post-edge protection for the full length of the body.

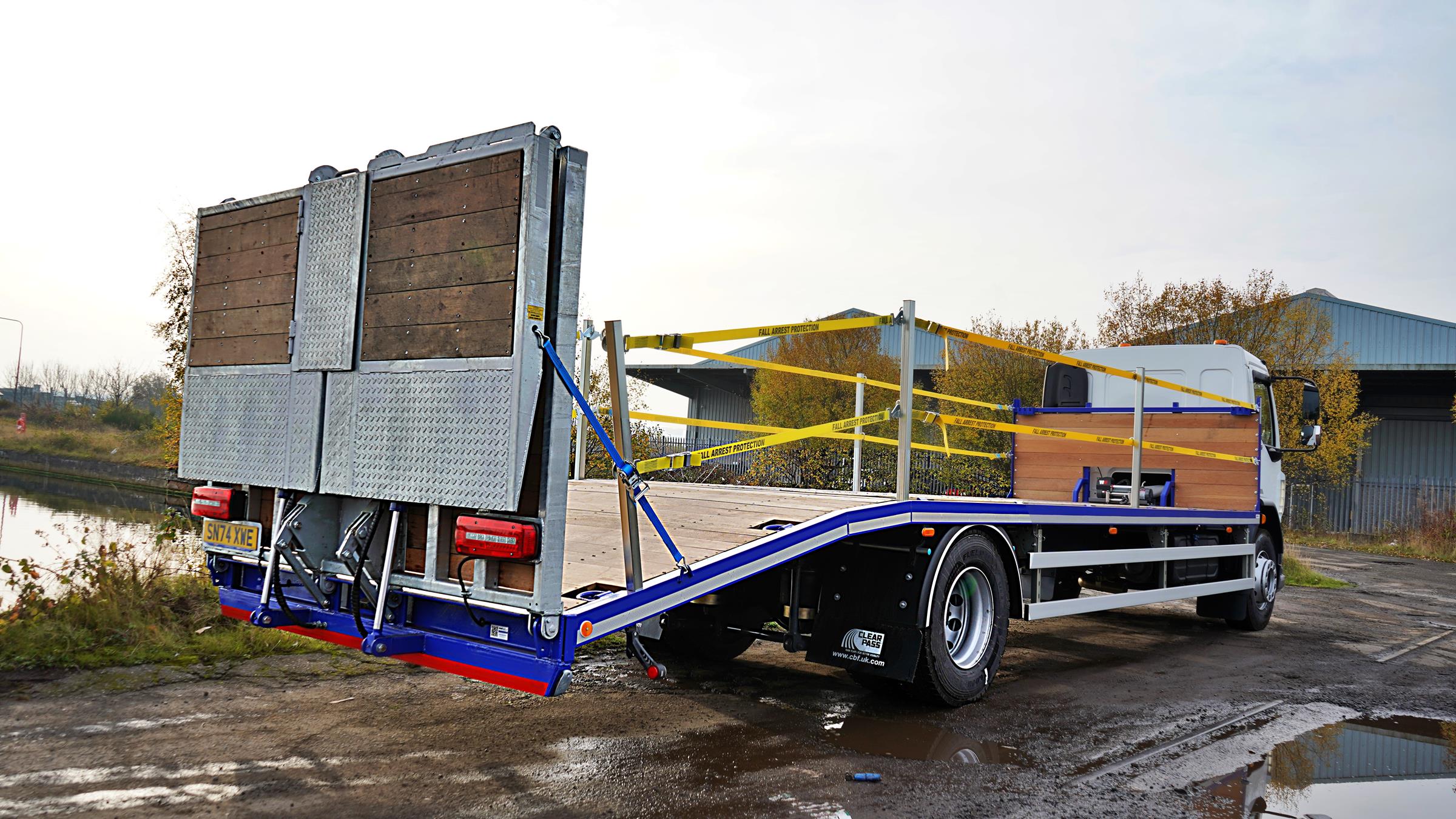

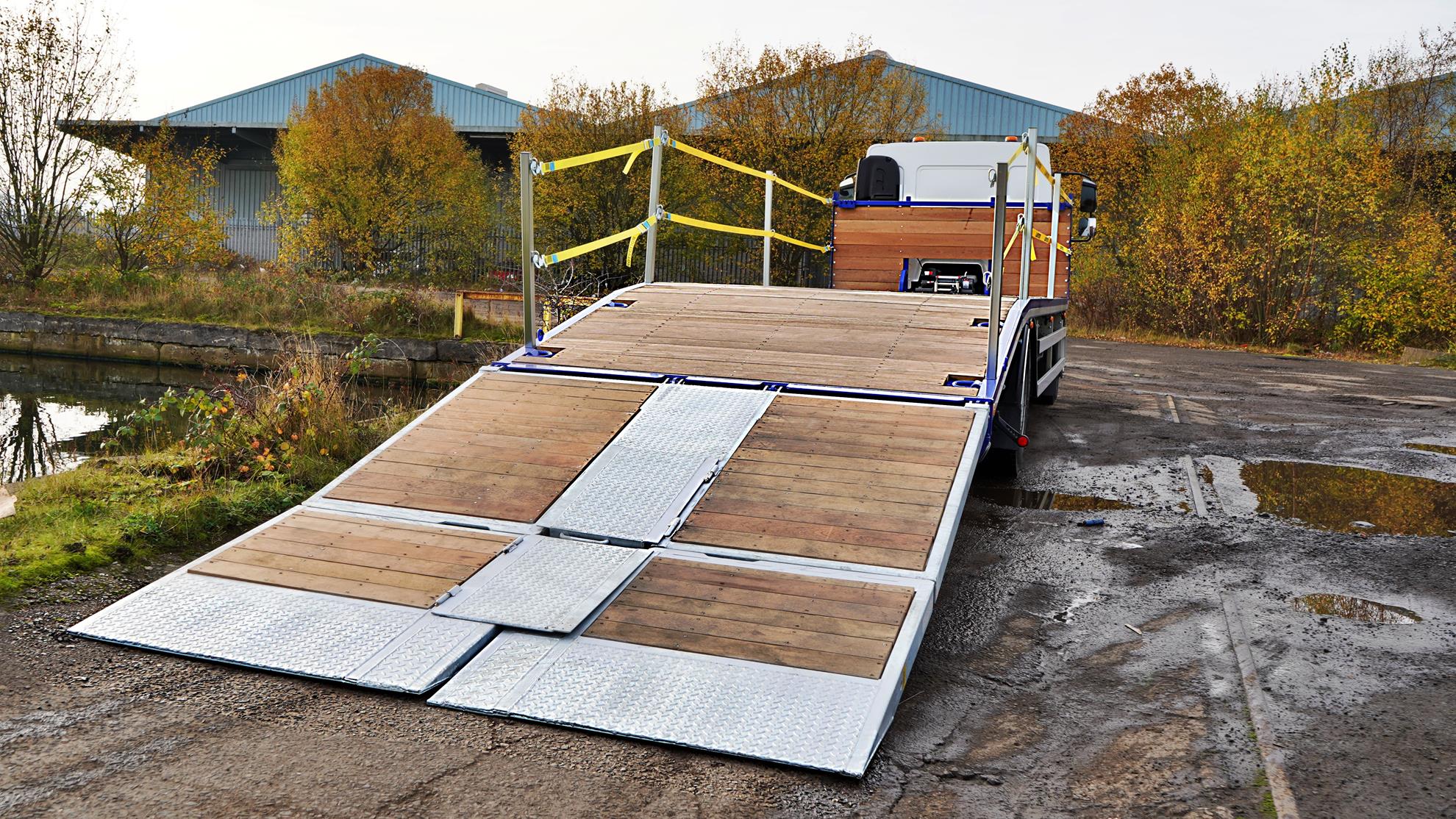

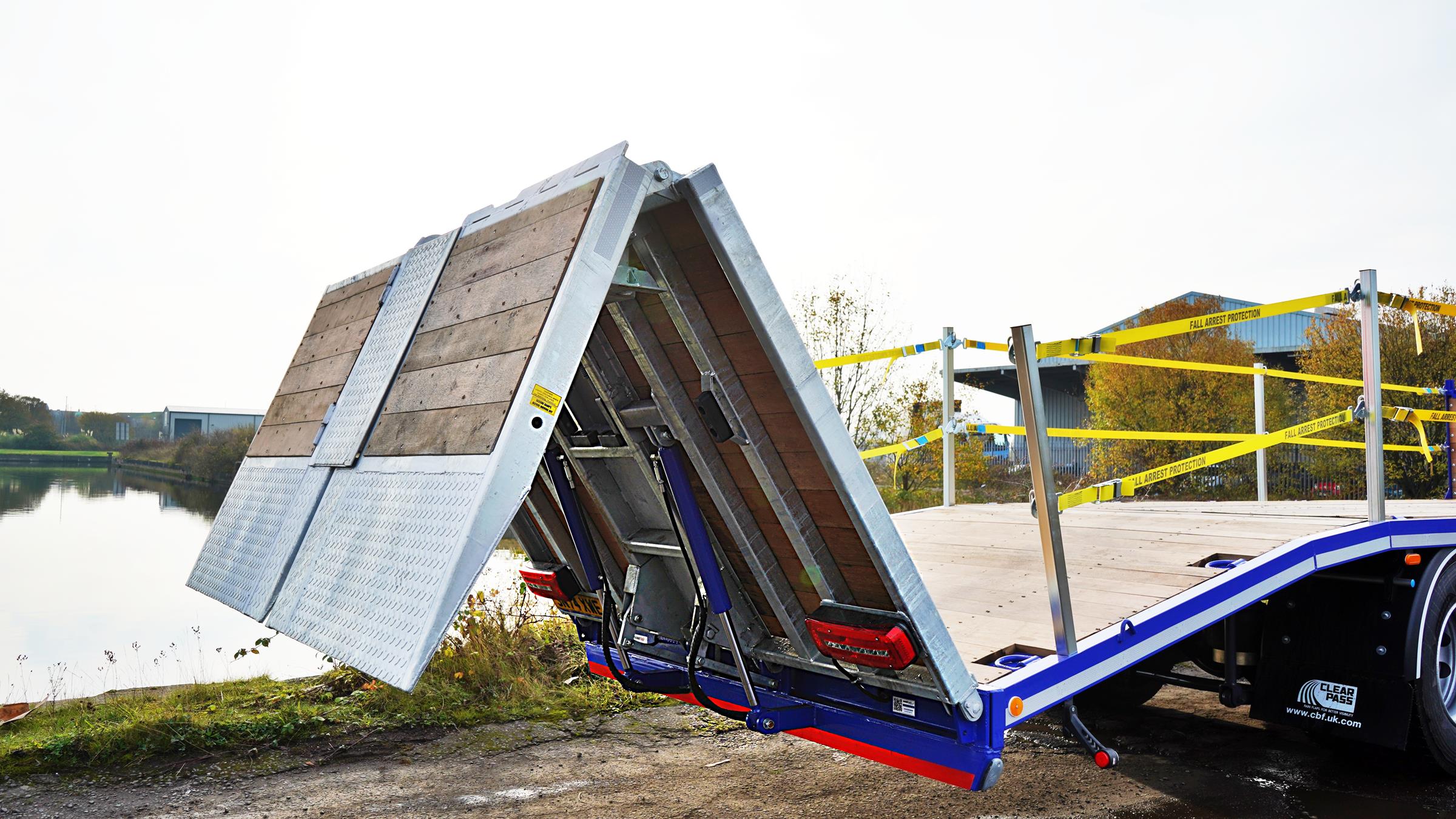

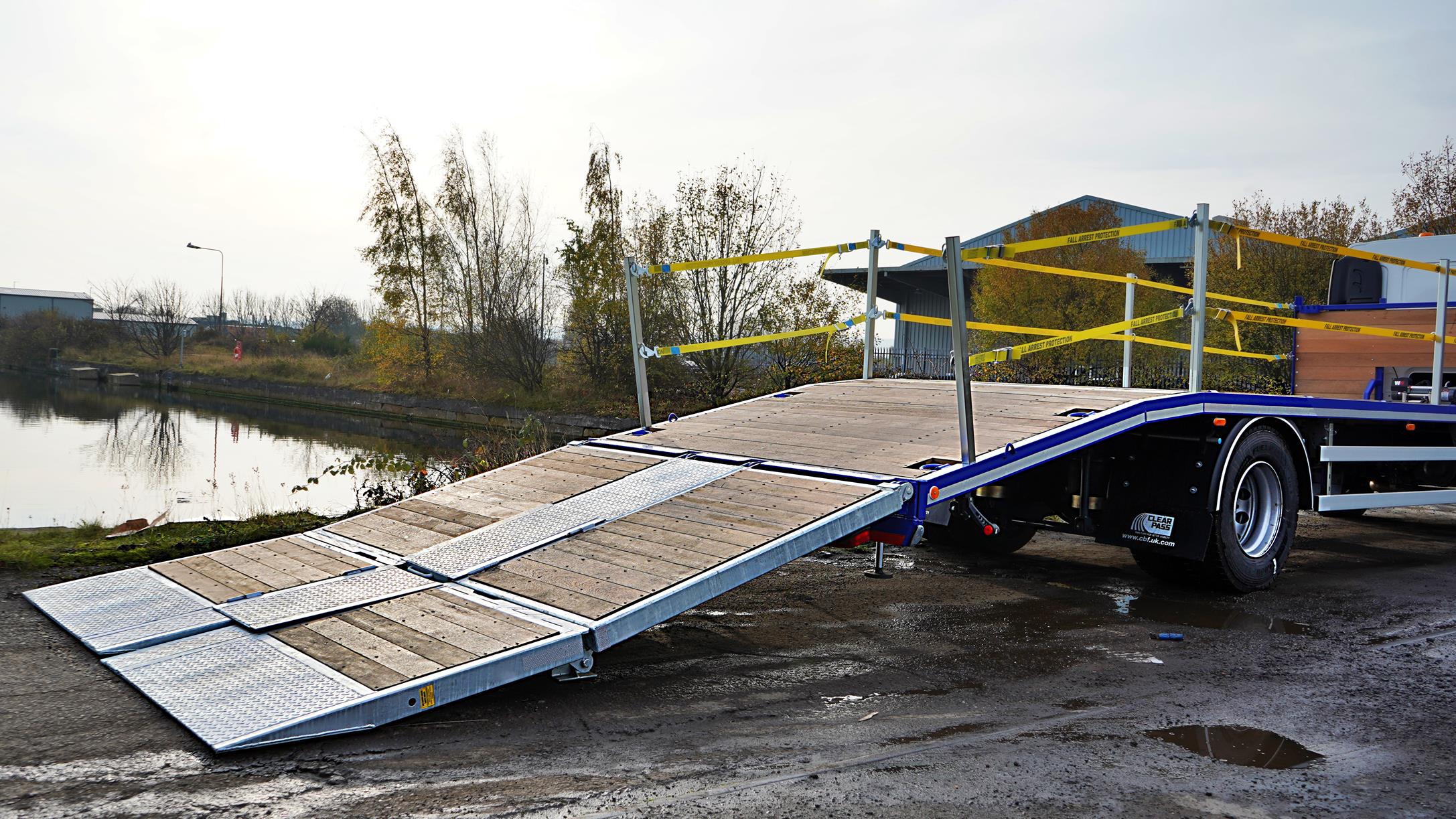

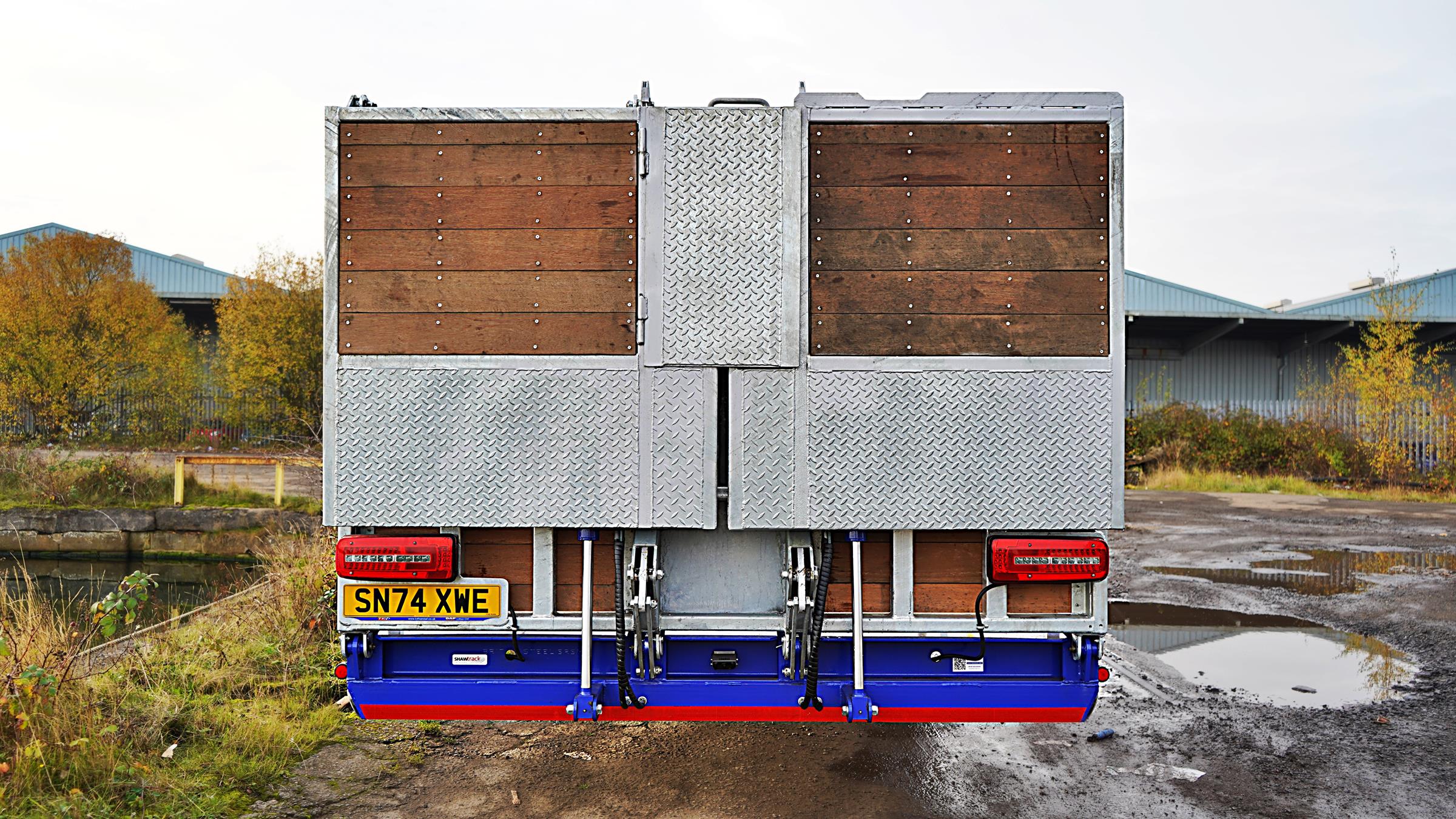

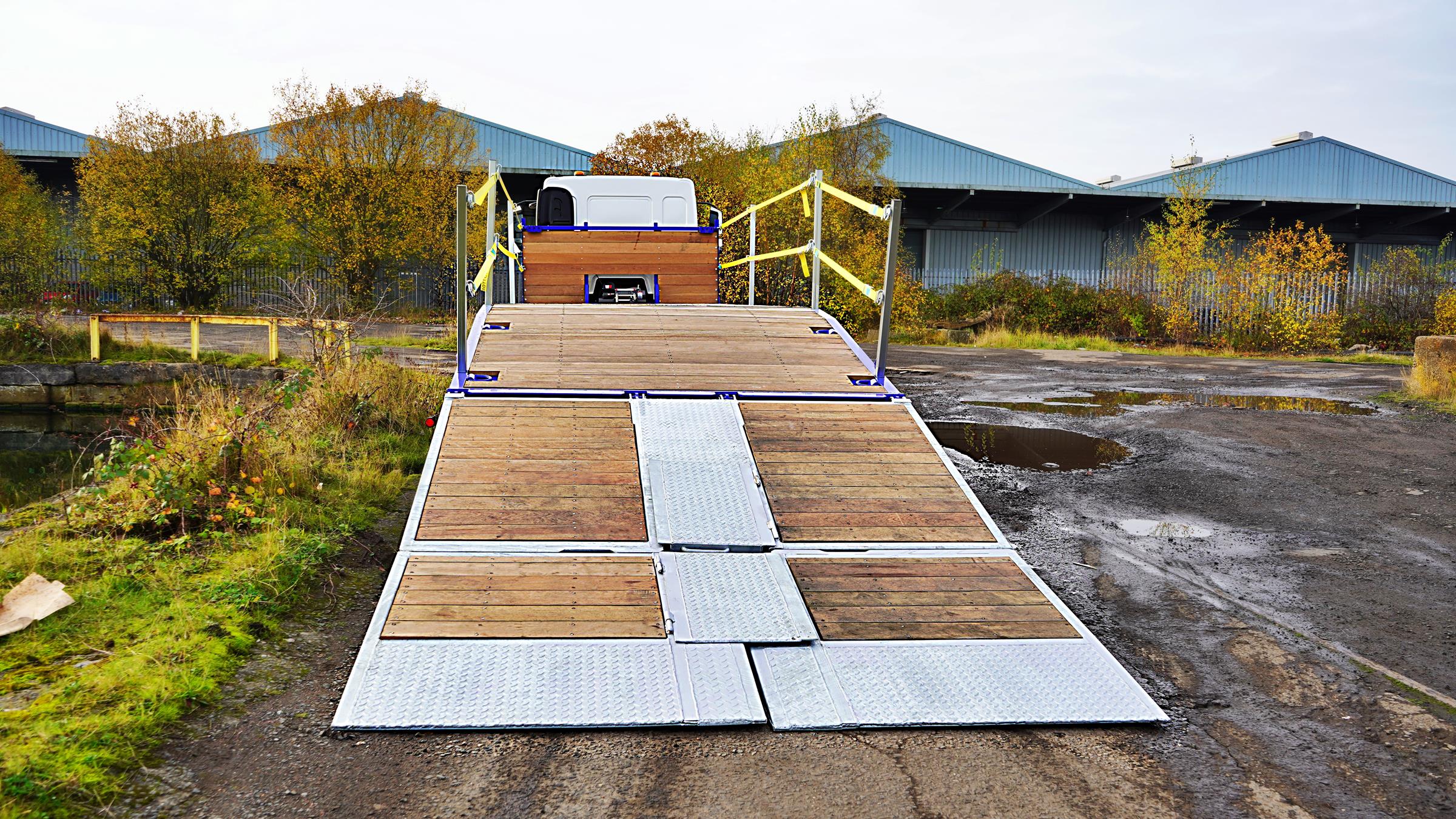

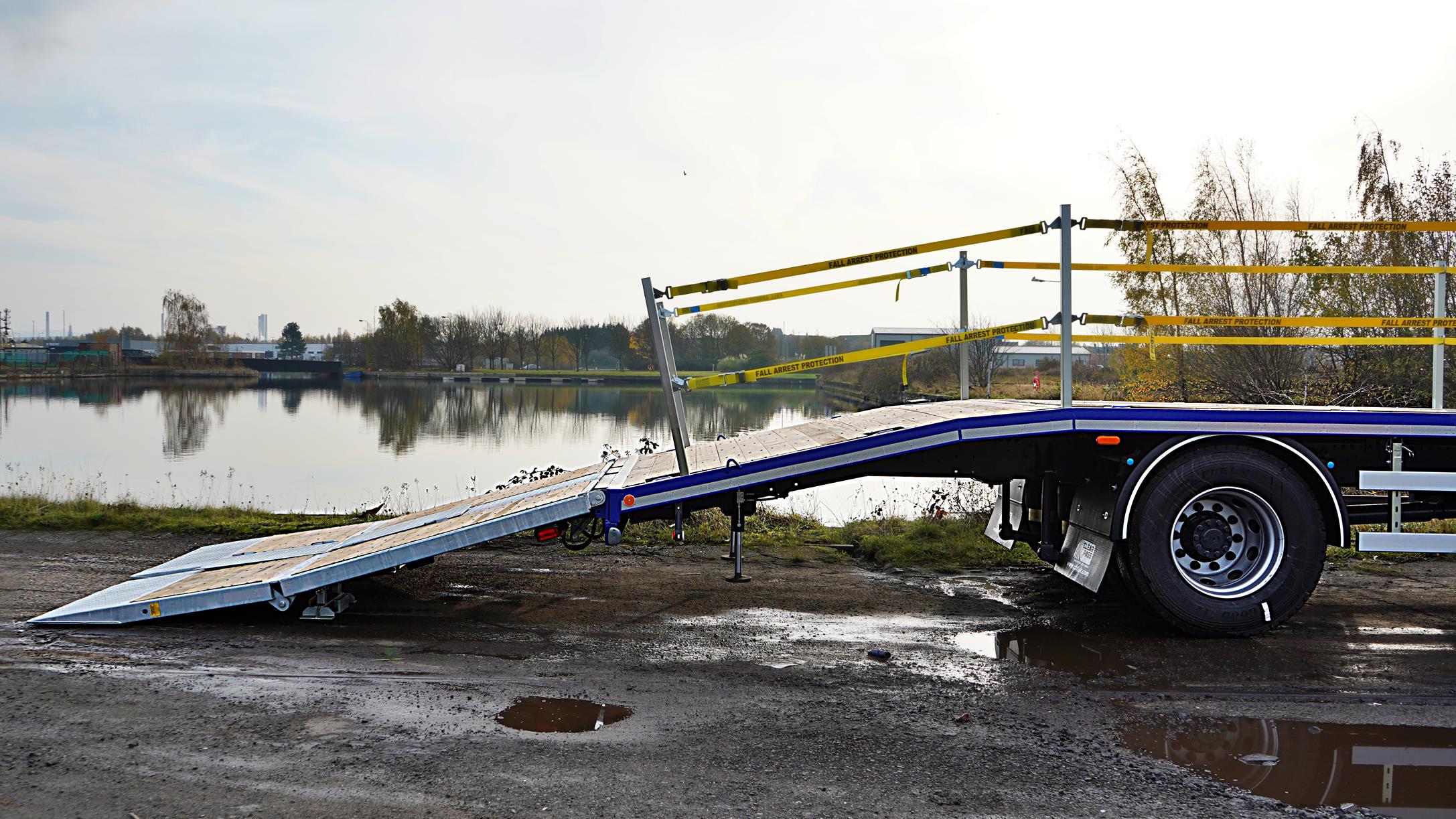

3m Long Full-width hydraulic double flip ramps with centre trapdoors.
The loading angle is set as low as possible in conjunction with the height of the rear air suspension on the chassis.
The ramp is filled with 28mm kerruing hardwood, with HD V-rubber to ramp and beavertail centre sections.
Two sets of auto swing down ramp feet for added support when loading and unloading.
A pair of hydraulic push-down steady legs mounted under beavertail operate sequentially with ramps.
Operation is via a single push-button control.
Burst valves on hydraulic rams and valve block terminals with check valves inside are used within the hydraulic system as standard.

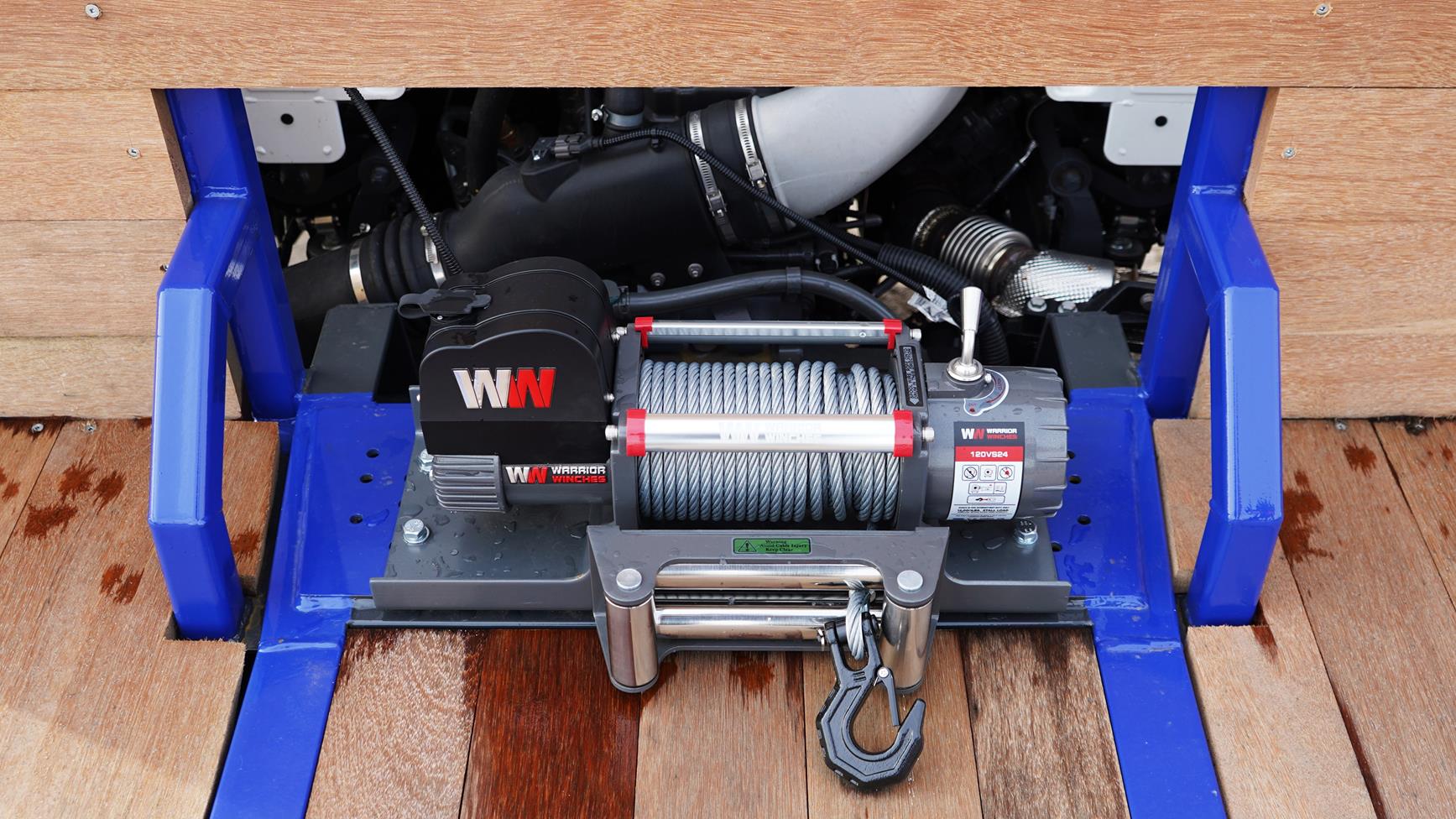

Warrior 120VS24 24v Steel Rope Winch
Fall Arrest System
Galvanised Finish
SN74XWE
Euro 6
260hp
Powerline 8-Speed Automatic Gearbox
Day Cab
Air Suspended Driver Seat
Twin Passenger
Air-Con
Bluetooth
DAB Radio
Twin Beacons
Steel Bumper
Bumper Mounted Fog Lights
Daytime Running Lights
Sunvisor
Reverse Camera
Weight: 18,000kg GVW
Tare Weight: 8200kg
Operating payload: >9300kg
Shawtrack 18-tonne Low Profile Beavertail Body
Battery and electro-hydraulic powerpack set up
Body length: Headboard to First Crank 21ft (29ft total to rear ramps)
8ft 4" wide Body - 2550mm
The subframe is constructed from a high-grade steel channel with I-beam cross members stitched through.
Side raves were constructed using a heavy-duty unequal angle channel.
1000mm high headboard infilled with hardwood timber.
28mm Kerruing hardwood flooring.
Six x 12-tonne lashing rings per side mounted on the flat deck.
Two x 12tonne lashing rings installed on each side on the beavertail
800mm plastic toolbox mounted underbody N/S.
Twin strap and post-edge protection for the full length of the body.
3m Long Full-width hydraulic double flip ramps with centre trapdoors.
The loading angle is set as low as possible in conjunction with the height of the rear air suspension on the chassis.
The ramp is filled with 28mm kerruing hardwood, with HD V-rubber to ramp and beavertail centre sections.
Two sets of auto swing down ramp feet for added support when loading and unloading.
A pair of hydraulic push-down steady legs mounted under beavertail operate sequentially with ramps.
Operation is via a single push-button control.
Burst valves on hydraulic rams and valve block terminals with check valves inside are used within the hydraulic system as standard.
Warrior 120VS24 24v Steel Rope Winch
Fall Arrest System
Galvanised Finish
STOCK #: | ALLTRUCK-511 |
REGISTRATION: | SN74XWE |
MANUFACTURER: | DAF |
MODEL: | XB 260 |
Weight: | 18000kgs |
EURO CLASS: | Euro 6 |
Engine size: | |
BHP: | 260 |
MOT Expiry: | |
Cab Type: | Day Cab |
Gearbox Type: | Automatic |
Body Type: | Beavertail |
Axle Configuration: | 4x2 |
Wheelbase Length: | |
Mileage: | 350 |
Colour: | White |
NUMBER OF OWNERS: | |
FUEL TYPE: | Diesel |
