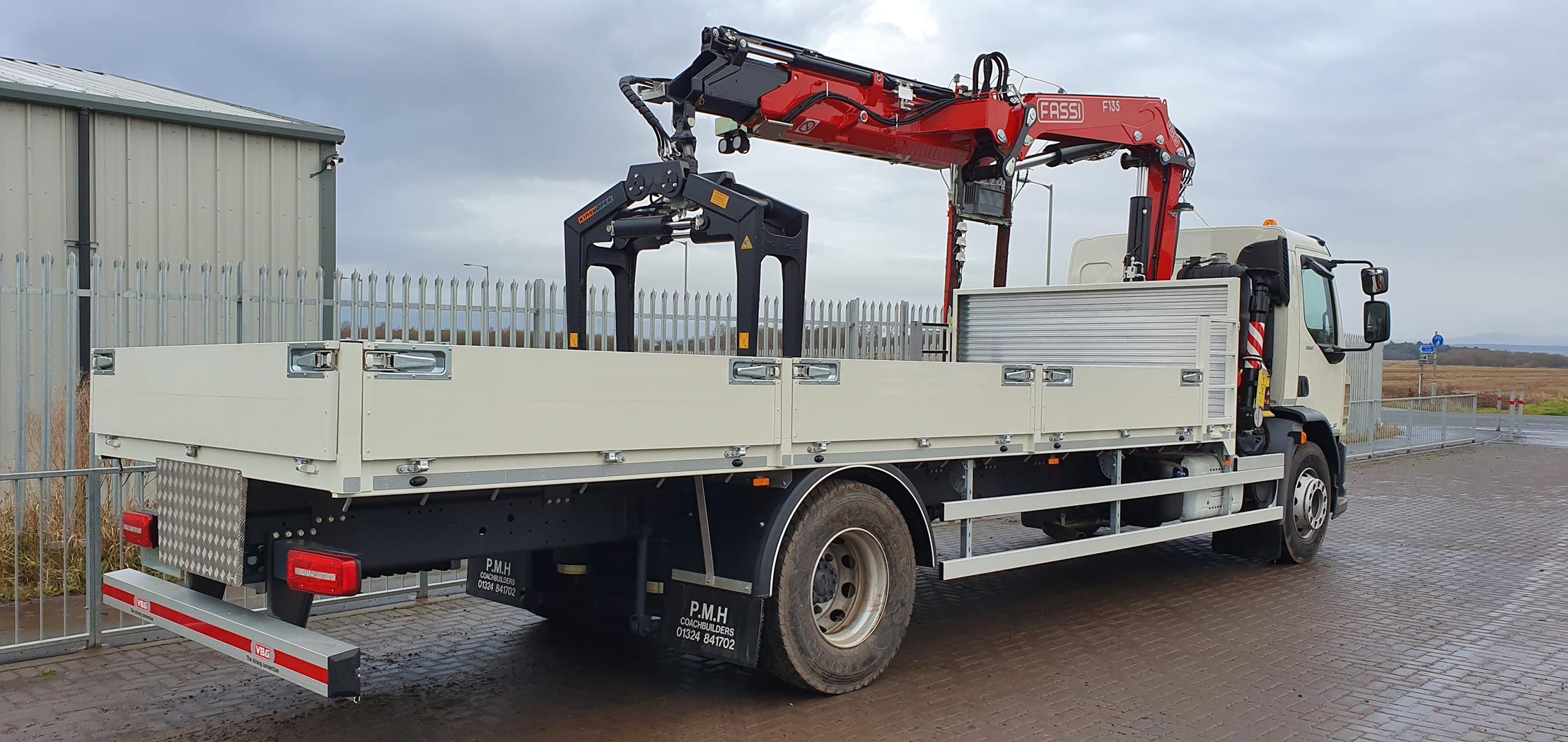

New 2024 DAF LF260 18 Tonne FASSI F135A.2.22 Dropside Crane Truck

New 2024 DAF LF260 18 Tonne FASSI F135A.2.22 Dropside Crane Truck fitted with Brick Grab or Hook.

2024 DAF LF260 4x2
Euro 6
260hp
Day Cab
AS Tronic Automatic Gearbox
Air-suspended driver seat
Adaptive cruise control with FCW and AEBS
Lane departure warning system
VDO Tacho
Radio/USB Player
Bluetooth
Daytime running lights
Bumper-mounted fog lights
Sun Visor
2x Beacons
rear air suspension
4750mm wheelbase
7.5t Front axle
Unladen weight 8410kgs
18t GVW

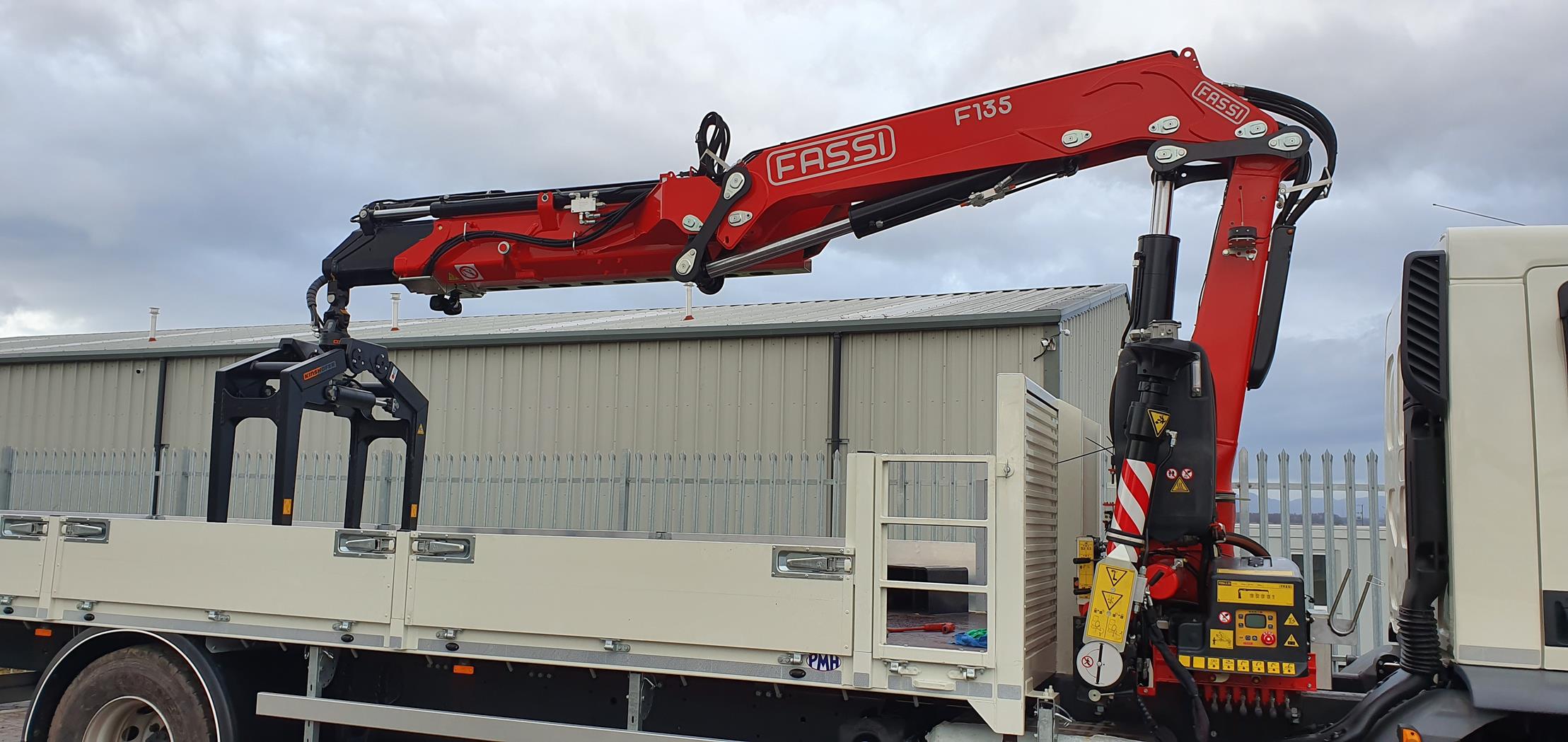

Fassi Crane
F135A.2.22 e-dynamic
FX500 electronic lifting moment limiting device with 1 control station
Radio remote Fassi RCS radio with mini control handle - 6 linear lever functions
Outriggers Super-extra hydraulic extendability of o/r (Total ext. mm 6620 - weight kg 90)
Extra Hydraulic Services 2 activated functions for .22 @ 260 bar. Including the PVED radio control module.
Stability control FSC/H for hydraulically extendable crane outriggers.
Overheight warning sensor
Work lights n. 2 LED work lights mounted on the secondary boom
Digital rotation control
Oil recycling valve - to maximise extension boom speed
Orange LED lights on crane outriggers
IE742 single feeding box (mounted)
Standard rotation

Crane Lifting Duty
1600kg @ 8.25m
2120kg @ 6.25m
3075kg @ 4.45m
4650kg @ 2.50m

Body
PMH 22ft triple aluminium dropside body, fully galvanised sub-frame, heavy-duty rope hooks, recessed floor lashing rings, 27mm wisadeck floor, half height alloy headboard, 1000mm lockable tool box, 8x sockets each side to support safety handrail system or load bolsters.
