2023 DAF CF320 6x2 26-tonne Rear Mount Fassi F155 Dropside Merchant Crane Truck For Hire or Lease

2023 DAF CF320 6x2 26-tonne Rear Mount Fassi F155 Dropside Merchant Crane Truck For Hire or Lease

DAF CF320 FAN 6X2
Euro 6
Engine PX-7, 6 cylinder diesel engine, 6.7 litres.
320hp
Day Cab
12-Speed AS Tronic Auto gearbox
Adaptive Cruise Control with FCW and AEBS-CM2
Lane Departure Warning System
Digital Smart tacho
Radio/USB player. Speaker system with 2 speakers
TruckPhone. Handsfree telephone kit with SIM card slot and Bluetooth antenna.
Multipoint-Pairing enables simultaneous operation of two additional mobile phones from the steering wheel.
Comfort Air Driver Seat
On Air
Rear Lift and Steer
Sun Visor
Bumper Mounted Fog Lights
Two Hazzard Beacons on Cab
Single Glazed Window in the Cab rear wall
Acoustic reverse warning with override switch
Front axle(s): Goodyear tyre size 315/80R22.5
Driven rear axle(s): Goodyear tyre size 315/80R22.5
Trailing axle, Goodyear tyre size 315/80R22.5
Front axle: Goodyear tyre size 315/80R22.5
Driven rear axle: Goodyear tyre size 315/80R22.5
Trailing axle: Goodyear tyre size 315/80R22.5
Wheelbase 5.05 m / rear overhang 3.10 m
6100mm Wheelbase
8-tonne Front Axle
26000 kg GVW

Body
Built to Maximum Length Dropside
Triple alloy dropside
28mm Wisadeck Plywood Floor
Rear Step Entrance onto Body
Galvanised Sub-Frame
Rope Hooks
Full-height alloy headboard with alloy plank infill
LED Worklights on Headboard
Fall Arrest System
Two Tool Boxes

Crane Fitted

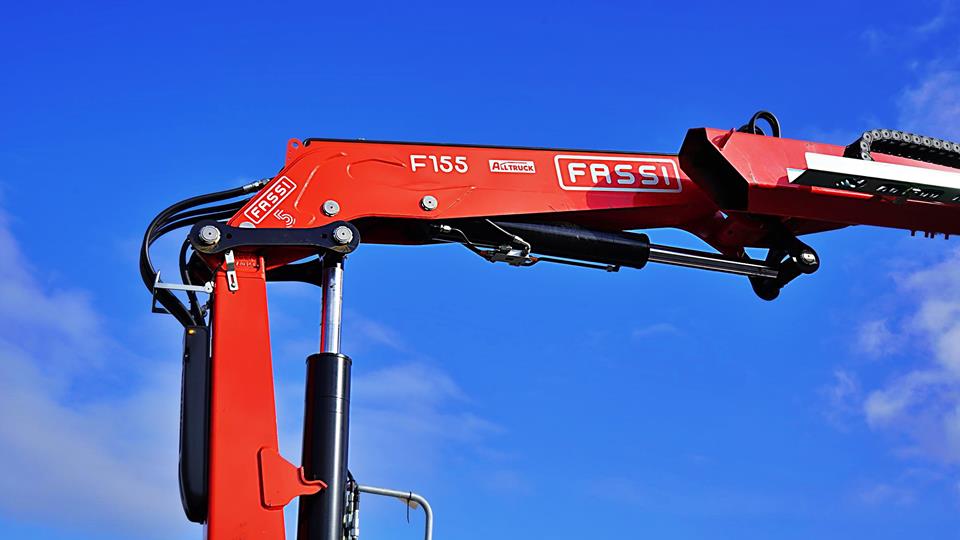

FASSI F155A.2.22 Rear Mount Crane
Fitted with Fassi "e-dynamic" package
Proportional digital "flow sharing" D850 distributor
FX500 electronic lifting moment limiting device with 1 control station
Fassi Radio remote control RCS radio with mini control handle - 6 linear lever functions with a spare battery.
Outriggers Super-extra hydraulic extendability of o/r (Total ext. mm 6620 - weight kg 90)
Extra Hydraulic Services 2 activated functions for .22 @ 260 bar. Including PVED radio control module.
Stability control FSC/H for hydraulically extendable crane outriggers.
Stability control Outrigger control for vertical movement
Cross over control Distributor controls and remote control sequence opposite to Fassi standard
Work lights n. 2 LED work lights mounted on a secondary boom
Oil-tank 120L Chassis mounted tank
Oil recycling valve - to maximise extension boom speed
Orange LED lights on crane outriggers
IE742 single feeding box (mounted)
Inverted rotation

Attachment
Kinshofer Brick Stack Grapple - scissor Grab
Model KM 331-1000
2000 kg Load Capacity
220-1420mm Gripping

Lifting Capacity

1750kgs @ 8.25m
2315kgs @ 6.25m
3350kgs @ 4.45m
5000kgs @ 2.5m

Alltruck is Scotland's leading Brick Grab and Builders Merchant Truck specialist in Scotland. Operating a large fleet of merchant crane trucks for Hire, Rent and Lease across Scotland from our sites close to Glasgow and Edinburgh. Hire or lease several manufacturers grab trucks like this one based on a DAF CF320 FAN 6x2, all with our own PMH designed merchant dropside body and the FASSI F155A.2.22 Rear Mount Crane fitted with a Kinshoffer KM 331 scissor grab. The perfect combination for moving and transporting building materials. Our rental fleet consists of the latest Euro 6 DAF merchant trucks, Volvo and Mercedes-Benz 26-tonne trucks specifically built for merchant use. Tried and tested by Scotland's leading building merchants. For our latest Brick grab hire rates and availability contact our rental desk on 08451 809 809 Option 2.
